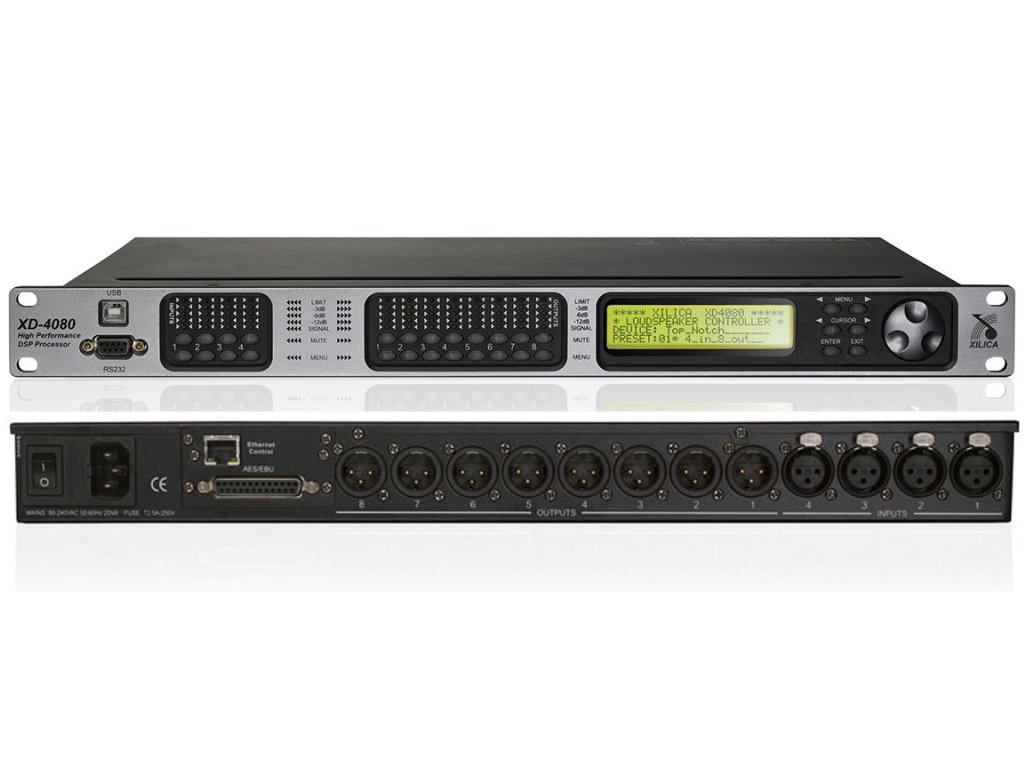

XILI XD-4080
Chcem zistiť cenu pre tento produkt
- Popis
- Otázka
The Xilica XD Series is our most complete fixed architecture digital processor. Building on the success of our original Classic “DLP” family of processors the Xilica XD Series brings a new level of audio performance and processing power to the world of fixed architecture DSP for live sound production and fixed audio installations.
Designed and engineered in Canada, only Xilica provides a state of the art 96kHz 40 Bit Floating Point DSP Engine, High Performance 24 Bit Converters, Precise Algorithms, FIR Crossover Filters and AES/EBU Digital In/Out at this value level. The result is “best in class” audio performance and feature set.
Description
The XD Series DSP are fixed architecture, fully programable, digital, audio system processors. Inputs can be matrix mixed/routed to any or all outputs; Our standard signal processing functions (as listed to the left) are joined by the addition of high performance FIR Crossover Filters and AES/EBU Digital Inputs and Outputs; Ethernet, USB and RS232 connectivity for configuration, control and software/firmware updates is standard; Processor configuration can be accomplished in real time from the front panel or with a computer running our easy to use XConsole software GUI (download XConsole at www.xilica.com); And with the Ethernet connection and a basic wired or wireless router the XConsole GUI can control individual or multiple XD-Series processors from any location.
Features
- 4×8 XLR Line Input/Output model; 8×8 Model w Euro/Phoenix Connectors
- XD-”M” versions have switchable Mic/Line inputs w 48v phantom power
- AES/EBU Digital Inputs & Outputs on Separate Connectors
- Ethernet, USB, and RS232 Connectivity for Configuration and Control (wireless ready)
- Up to 16 devices in a Xilica network
- 96kHz, 40 Bit Floating Point DSP Engine and High Performance 24 Bit Converters
- Processor Configuration via Front Panel or easy to use XConsole Software GUI
- Matrix Mixer
- 31 Band, 1/3 Octave GEQ per Input
- 8 Band PEQ per Input and Output
- Dual IIR Crossover Filters per Input and Output
- Dual “FIR” Multi-Tap Brick Wall Crossover Filters per Output
- 650ms Delay per Input and Output
- Input Compressors and Output Limiters
- Phase Correction
- High Performance Switching Power Supply
- 30 Presets / Password Protection
- Optional XPanel Wall Control
- Designed and Engineered in Canada
- Warranty: 2 Years Parts and Labor
